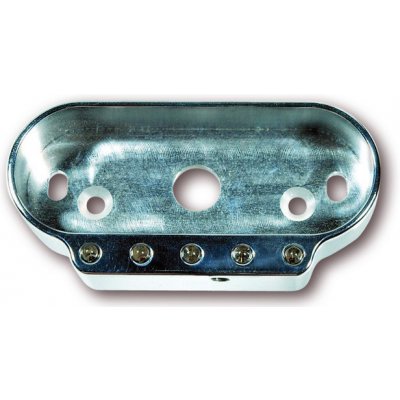

MOTOG MSM COMBI FRAME W/ IND LIGHTS, SIL

The msm combi frame allows the motoscope mini to be mounted by means of further attachments on the handlebars. 5 indicator lights and series resistors are already integrated. It is available milled from solid aluminium, brushed anodised or polished.

For installation, an additional mounting element such as combi Clip-Kit Bracket, combi Bolt-On Bracket, combi Weld-In Bracket or combi Retainer Plate is required. The motoscope mini is not included.

cable colour - function - polarity
- red - turn signal left - +12V
- blue - turn signal right - +12V
- orange - turn signal ground - ground
- green - high beam - +12V
- yellow - high beam - Ground
- white - neutral - +12V
- black - neutral - ground
- brown - oil pressure - +12V
- purple - oil pressure - ground

Optionally, the right turn signal indicator light can be used for further warning functions, which supply a +12V signal, can be used.
To display both indicators on the left turn signal indicator light, please follow the assembly instructions.&ltScope of delivery:
Combi frame
approx. 50 cm cable
screws
instructions
br/&gtthe motoscope mini is not included in the scope of delivery.
