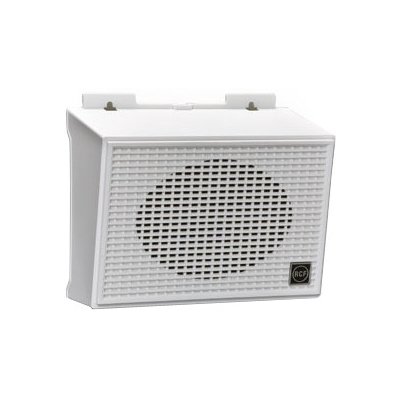

RCF CSN-N

nástěnný reproduktor, 3 W/4 ohm, 93 dB, 234×195×150 mm, plast, bílý, možné příslušenství: transformátor TD105

• The CSN-N is a wall-mount speaker which can be used singly for audio reproduction in small spaces (e.g. hotel rooms, small waiting rooms, etc.), or in groups for extensive and uniform audio reproduction in large spaces.

• The CSN-N can be directly connected to constant impedance audio lines, and can also be used in systems with constant voltage at 70 V or 100 V by installing the dedicated line transformer.

Features:

• For paging and background music, suitable for installation in any flat surface

• Music power / RMS: 6/3W, 4ohm

• Extended range elliptical speaker

• Factory set to incorporate a line transformer for constant voltage systems, TD 105 model (code no. 13330001)

• Body in shockproof plastic, RAL 9003 White

Acoustical Specifications:

• Type of speaker: Wall speaker

• Frequency Response: 120 Hz ÷ 10 kHz

• Max SPL @ 1m: 101 dB

• Horizontal coverage angle: 80°

• Vertical coverage angle: 110°

• Power Handling: 3 W RMS

• Peak Power Handling: 6 W PEAK

• System Sensitivity: 93 dB

• Impedance: 4 ohm

Transducers:

• Speaker: 6"

Input Section:

• Input connector: 2 conductor cable

Cabinet:

• Hardware: Body in shockproof white plastic.

• Colour: White

Physical Specifications:

• Height: 184 / 7.24 mm/inch

• Width: 237 / 9.33 mm/inch

• Depth: 150 / 5.9 mm/inch

• Net weight: 0.67 / 1.47 kg/lbs

Shipping information:

• Package height: 210 / 8.26 mm/inch

• Package width: 275 / 10.82 mm/inch

• Package depth: 130 / 5.11 mm/inch

• Shipping weight: 0.97 / 2.13 kg/lbs
